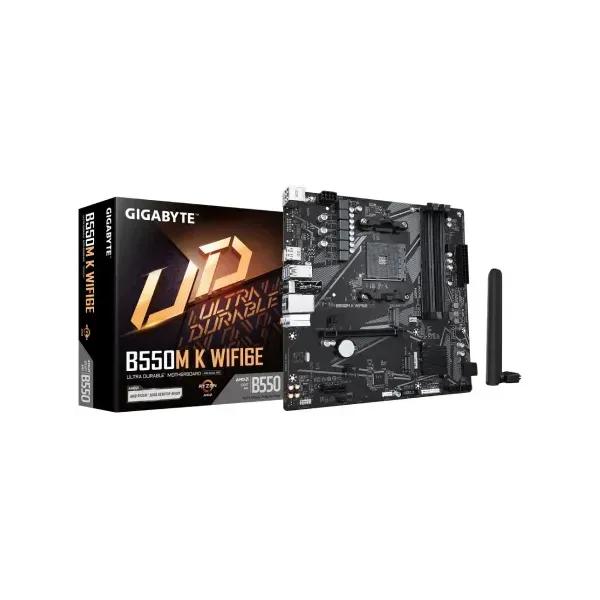

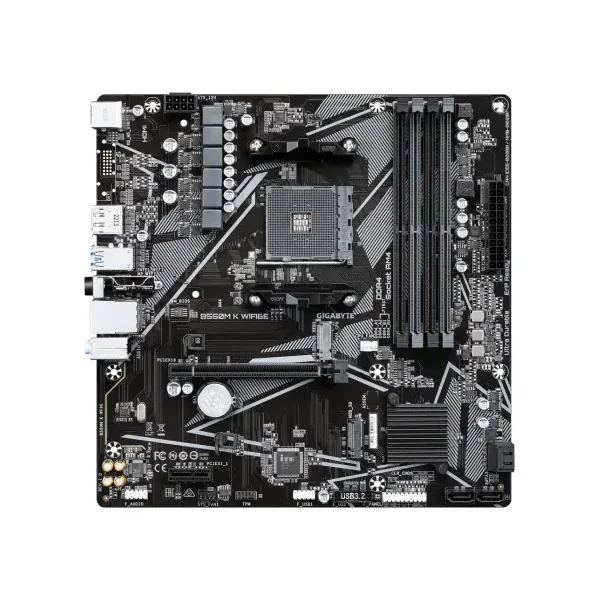

Gigabyte B550M K WIFI6E AMD AM4 mATX Motherboard
Key Features
- Model: B550M K WIFI6E
- Supported CPU: Ryzen 5000/4000/3000 Series Processors
- Supported RAM: 4x DDR4, Max 128GB 4733(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek GbE LAN, WiFi 6E, Bluetooth 5.3
Specification
General
- Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR
Memory
- Slots
- 4 x DIMM
- Supported Memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 213
- Maximum Memory
- 128 GB
Graphics
- Max Shared Memory
- 16 GB
Connectivity
- HDMI
- 1 x HDMI
Basic Information
- Audio
- Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel 3 x audio jacks
- Supported CPU
- AMD Socket AM4, support for: AMD Ryzen 5000 G/5000/4000 G/ 3000/3000 G Series Processors/
- Chipset
- AMD B550
- Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Power
- Type
- DDR4
Expansion Slots
- PCI
- 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors sup
- M.2 Socket
- 1 x M.2 connector (M2A_CPU) 1 x M.2 connector (M2B_SB)
Connector & Ports
- USB (s)
- CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports avai
- LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Wireless Communication module
- MediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
- Supported Storage
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryze
- RAID
- Support for RAID 0, RAID 1, and RAID 10
- Internal I/O Ports
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1
- TPM (Trusted Platform Module )
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- Display Port (s)
- 1 x DisplayPort
Warranty Information
- Manufacturing Warranty
- 03 years
Others
- Special Features
- Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
- Bundled Software
- Norton® Internet Security (OEM version)
